LM4580 DUAL LOW NOISE OPERATIONAL AMPLIFIERS
1、General Description The LM4580 is a monolithic dual low noise operational amplifier. It is specifically designed for audio systems to improve tone control; it can also be used in preamplifier,industrial measurement tools and applicationswhere gain and phase matched channels are mandatory. The IC features internal frequency compensation, lownoise, low distortion, high gain and high bandwidth.The LM4580 can operate under dual power supply voltage up to ±18V or single power supply up to 36V.The LM4580 is available in DIP-8, SOIC-8 and TSSOP-8 packages. | 2、Features
3、Applications
|

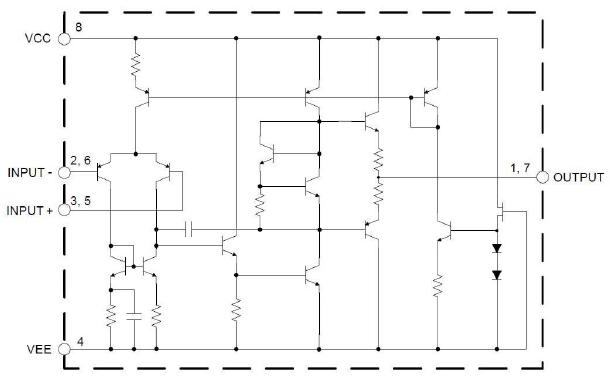

| 4、Functional Block Diagram | 5、Pin Configuration |
 |  |
代謝物型號查詢 | 要貨情況 | 短信通道數 | 每日任務額定電壓范圍 (V) | 增益值服務器帶寬積 | 外部感應電流/過道 | 動態平衡電阻值 （mV） | 均衡額定電壓溫漂 （μV/°C） | 輸出電壓偏置直流電壓 （nA） | 打包封裝 |
| LM4580 | 量產 | 2 | 4.0-36 | 15MHz | 3.5mA | 3 | 5 | 500 | SOP8/DIP8/TSSOP8 |
